Submeraged Cooling Two-Phase Immersion Submeraged Coooling System For Data Centers

Name: Submeraged Cooling TwoPhase Immersion Submeraged Coooling System For Data Centers
Brand: Shenglin
Price: 20000 USD

Wholesale Submeraged Cooling Two-Phase Immersion Submeraged Coooling System For Data Centers from china suppliers

Brand Name : Shenglin

Model Number : SHSL-D2 Series

Certification : CE and RoHs

Place of Origin : China

MOQ : 1

Price : 20000~50001 USD per unit

Payment Terms : T/T, Western Union

Supply Ability : 100 units/ month

Delivery Time : 35~40days

Packaging Details : Stretch film +pallet for container loading

Tube material : Copper Or stainless steel

Fin material : AlAluminum fin or stainless steel fin

Frame material : SUS 304/ G.I./ AL

Fan brand : ZIEHL-ABEGG Is OK

Options A : Wet curtain or spray system

Options B : OEM is OK

Application : Data center

Media : Electrolyte、Dielectric liquid cooling

Advantage : Energy saving greatly

Contact Now

Submeraged Cooling Two-Phase Immersion System For Data Centers

Two-Phase Immersion

Pros:

- High build quality by necessity

- Up to 98% reduction in cooling power

- Long life fluid (20 years)

- High cooling capacity (4kw per liter)

- Equipment is dry and clean when removed

- Fairly simple plumbing

- Excellent scaling

Cons:

- Not ideal at small scales

- Control costs are the same for 250kW and 10kW

- Controls are complex and expensive

- Cannot use HDDs

- Tanks must be stainless

- Fluids leak easily so quality control must be tightly adhered to

Submeraged Cooling Two-Phase Immersion Submeraged Coooling System For Data Centers

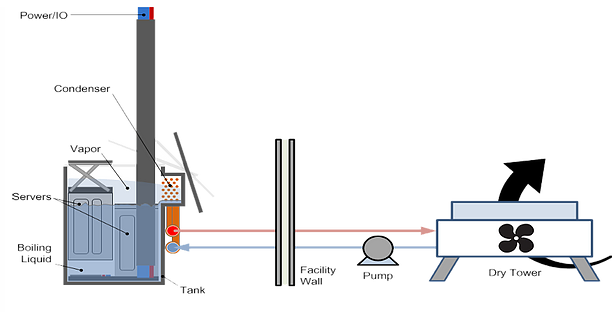

The above graphic depicts a two-phase immersion cooling system. In this system, the fluid boils on the chips and the phase change provides the majority of the cooling. These systems are more complex than single-phase systems but offer higher efficiencies, scalability, and lower maintenance.

Unlike single phase cooling, equipment is dry when removed thanks to 3M's Novec and Fluorinert Fluids.

At present, we mainly offer two-phase cooling. The benefits far outweigh the added complexity.

Shenglin and Shenglin partner can offer one-stop solution:

For bitcoin mining farm, if use immersion cooling system, Shenglin dry cooler is the most cost-effective way to remove heat and a necessary component of the immersion cooling system, We designed a full range of immersion optimized dry coolers. From 5kW single fan unit to the V-shaped 48-921kW dry coolers. Made in China, sized to your needs.

Some submeraged cooling system dry cooler reference:

Submeraged Cooling Two-Phase Immersion Submeraged Coooling System For Data Centers

Country: USA

Application: Bitcoin immersion cooling system

Cooling capacity: 1270kW

Cooling medium: BC-888

Supply power: 415V/3P/60Hz

Fan brand: Ziehl-Abegg

Country: USA

Application: Bitcoin immersion cooling system

Cooling capacity: 171kW

Cooling medium: bitcoin fluid

Supply power: 415V/3P/60Hz

Fan brand: Chinese brand

Reference:

Dry cooling tower case
Case 1 Chemical plant	Case 2 Chemical plant. Refrigerant: ethylic acid(flow: 372 ton/h)

Case 3 Communication station As air conditioner outdoor unit in China	Case 4 Communication station As air conditioner outdoor unit
